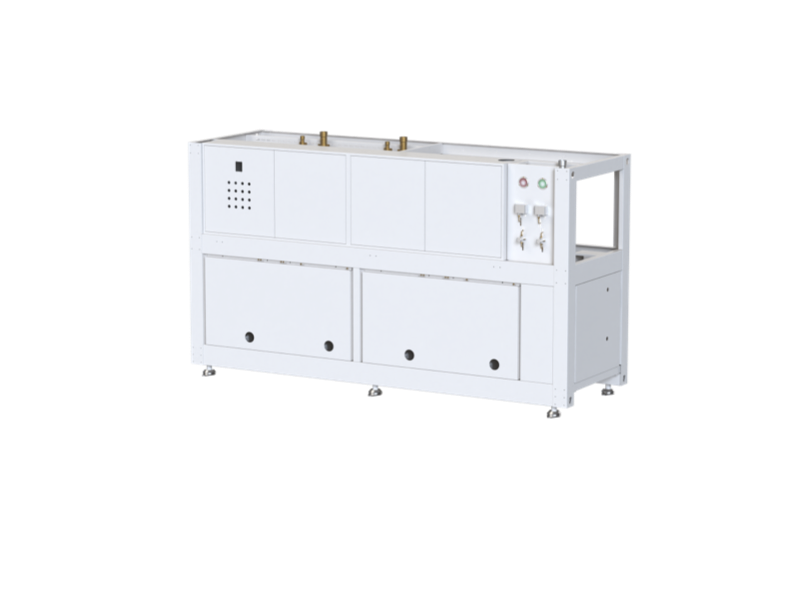

Indoor Split Parallel Unit — Remote Condenser Parallel Compressor System
• Compressor: Bitzer semi-hermetic piston / Panasonic / Emerson fully enclosed scroll
• HP Range: 15-180HP (piston) / 16-120HP (scroll)
• Evap Temp: -40~+10℃
• Refrigerant: R404A/R449A/R448A/R507A/R452A
• Power Supply: 3PH, 380V-50/60Hz；220V-50/60Hz
• Structure: Split type: Indoor parallel unit + Outdoor V-shaped condenser
• Dimensions: Customization on demand
Units undergo simulated layout and commissioning during production for plug-and-play deployment.
Integrated suction/liquid separators, oil separators, and high/low pressure protection for fail-safe reliability.
Supports 380V-50/60Hz or 220V-50/60Hz and R404A/R449A/R448A/R507A/R452A.
Multi-compressor parallel design dynamically adjusts active units based on cooling demand. If one compressor fails, others automatically compensate.
| Technical Specifications | |||||||
| Model | Nominal Power | Size | Power Supply | Compressor | Refrigerant | Unit Weight | Evap.Temp |
| Semi-hermetic piston compressor | 15HP-180HP | Length*1100*2200, modular design, length direction changes | 3PH，380V-50Hz/60Hz，220V-50Hz/60Hz | Bitzer semi-closed piston, Panasonic/Emerson fully closed scroll | R404A/R449A/R448A/R507A/R452A | / | -40~10 |
| Fully enclosed scroll compressor | 16HP-120HP | Length*1100*2200, modular design, length direction changes | 3PH，380V-50Hz/60Hz，220V-50Hz/60Hz | Bitzer semi-closed piston, Panasonic/Emerson fully closed scroll | R404A/R449A/R448A/R507A/R452A | / | -40~10 |
We offer full OEM/ODM customization for large orders.
15-180HP, customized as needed.
200-900㎡ optional.
At least 2 AC/EC external rotor axial fans.
PLC + cloud platform as standard configuration.
